Streaming Without Compromise

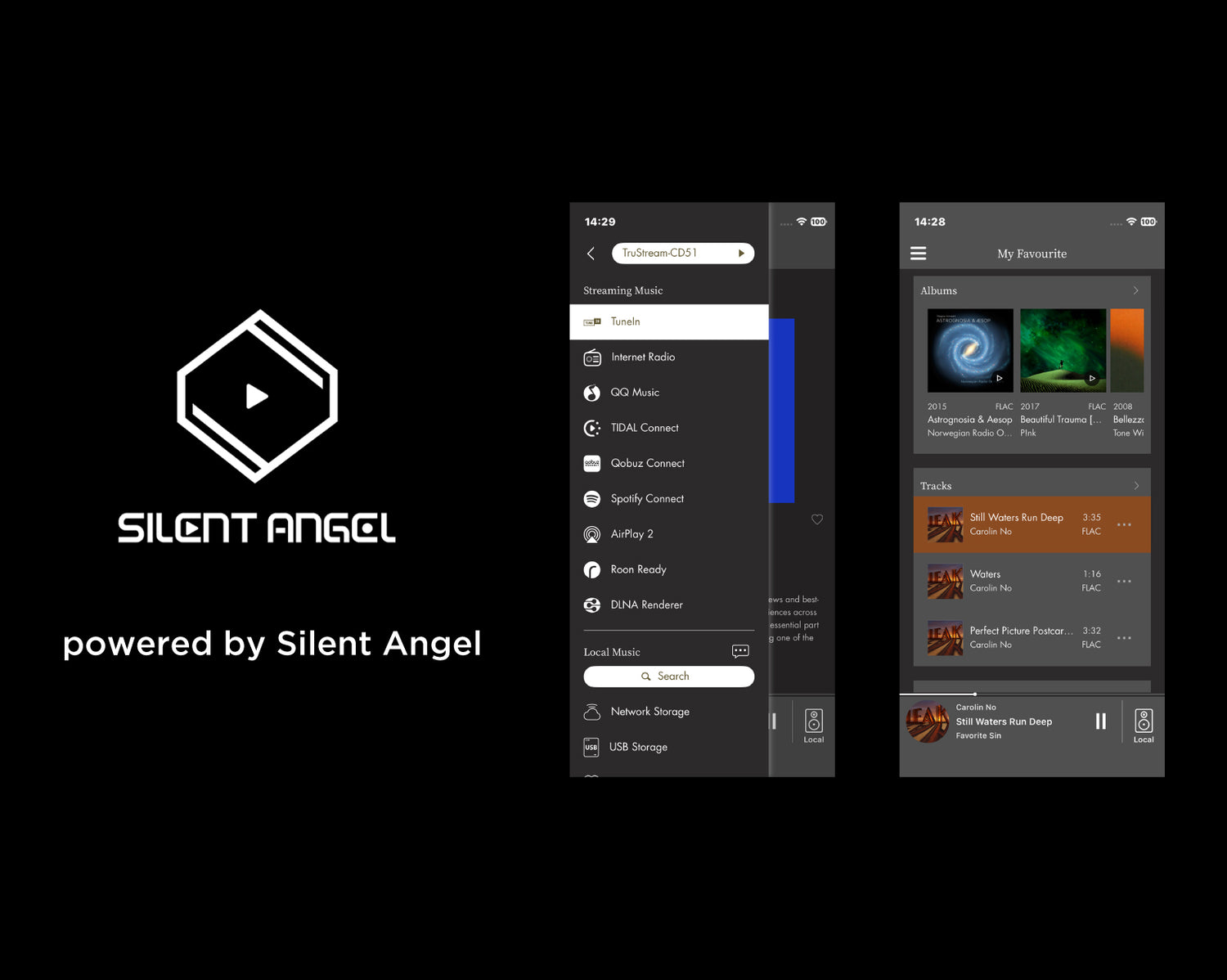

At the core of TruStream is a high-performance streaming platform powered by Silent Angel, specialists in low-noise digital audio transmission. Using the custom LEAK TruStream app, this platform ensures stable network performance, precise clocking and low-jitter data handling — essential elements for achieving truly high-fidelity streaming.
TruStream supports a comprehensive range of modern music services and playback technologies, including Spotify Connect, TIDAL Connect, Qobuz Connect, TuneIn, Internet Radio, AirPlay 2 and Roon Ready certification.
Network playback from shared storage via DLNA and SMB/CIFS is also supported, along with direct playback from USB drives and external storage.
The result is a streaming experience that is seamless, stable and deeply musical.
Effortless Setup, Seamless Control

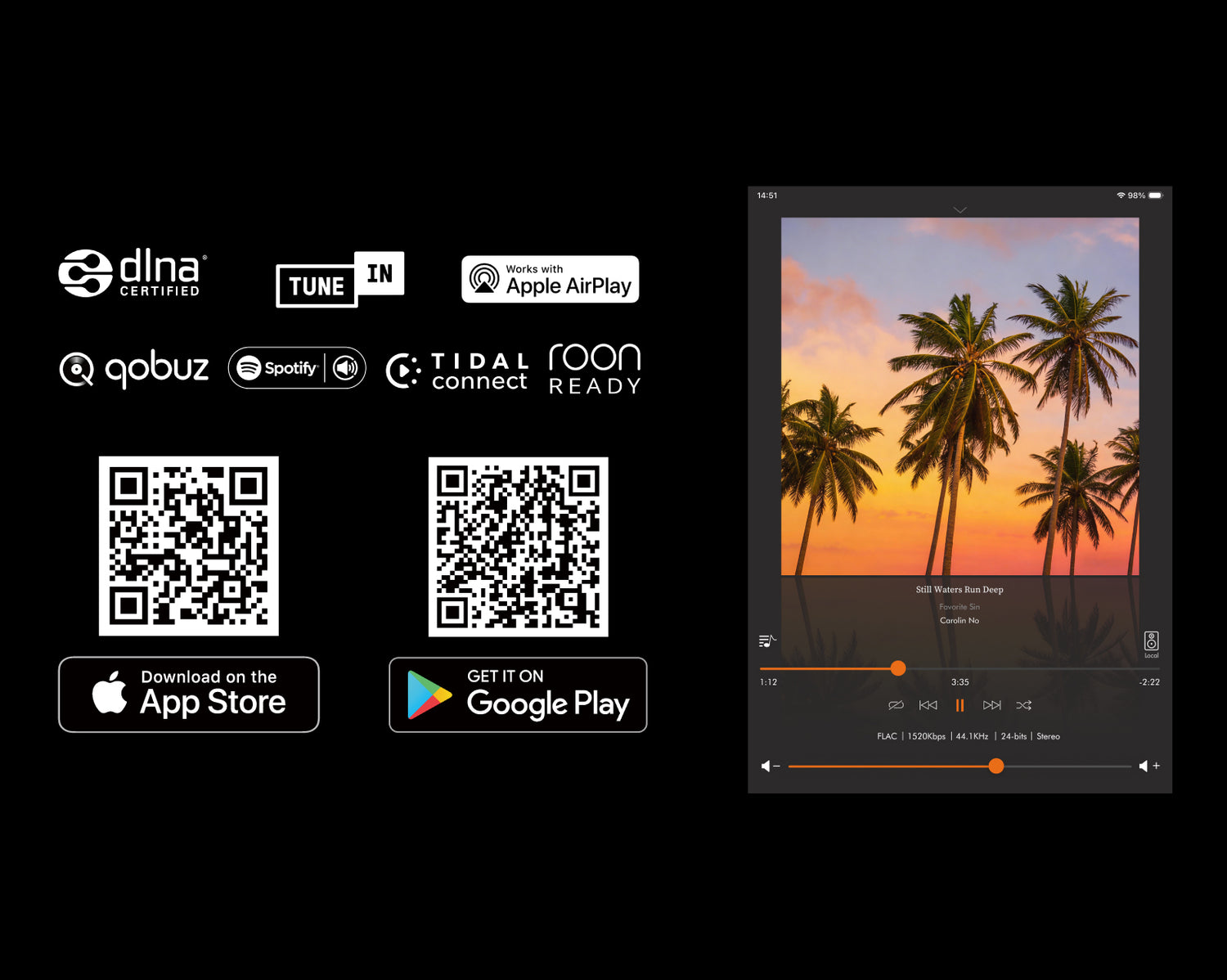

Despite its advanced capabilities, the LEAK TruStream is designed to be exceptionally simple to install and operate. Network connection can be established via Wi-Fi or wired Ethernet, providing flexibility for any listening environment. For added convenience, WPS pairing allows compatible routers to connect instantly at the press of a button. Once connected, the dedicated LEAK TruStream app for iOS and Android provides intuitive control over setup, streaming services and local music libraries, bringing together modern convenience and classic hi-fi performance in a beautifully straightforward user experience.
Reference-Grade Digital Conversion
At the heart of TruStream lies the ESS Sabre ES9038Q2M Reference DAC — one of the most respected digital-to-analogue converters in modern audio design.
This 32-bit architecture provides exceptional dynamic range, extremely low distortion and outstanding time-domain precision.
Carefully implemented with LEAK’s low-noise power design and signal-isolation architecture, the DAC enables TruStream to reveal the subtle textures, spatial cues, and musical dynamics in high-resolution recordings.
True High-Resolution Audio
TruStream supports a wide range of high-resolution audio formats, enabling playback at the highest levels of fidelity.
Supported formats include PCM up to 768kHz, DSD up to DSD512, FLAC, ALAC, WAV, AIFF, APE, MP3, AAC, OGG and other formats.
This ensures that TruStream can reproduce everything from classic CD-quality recordings to studio-master high-resolution files with absolute accuracy.
Analogue Purity, Digital Flexibility
Unlike many streaming devices that function purely as digital transport devices, TruStream is designed as a complete, high-performance source component.

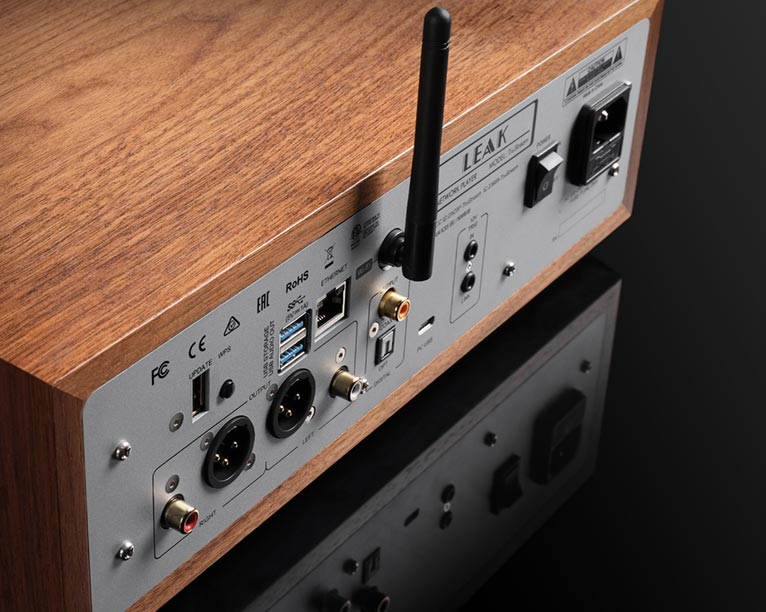

The integrated DAC allows direct analogue connection to amplifiers via both RCA and balanced XLR outputs, preserving the full resolution of high-definition audio formats.
For maximum system compatibility, TruStream also includes an optical digital output, coaxial digital output, USB Audio output, Ethernet networking as well as Wi-Fi, USB storage inputs and a dedicated headphone output.
This flexibility allows TruStream to integrate effortlessly into virtually any hi-fi system — classic or contemporary.
A Headphone Amplifier Worth Listening to
For private listening, TruStream incorporates a dedicated current-feedback headphone amplifier that drives a wide range of headphones with precision and authority.
From high-impedance studio designs to modern portable headphones, the amplifier delivers detailed, dynamic sound with excellent control and clarity.
Late-night listening has never sounded so engaging.
Designed in the LEAK Tradition
From the pioneering Stereo 30 of the 1960s to the acclaimed Stereo 130 and Stereo 230, LEAK components have always combined engineering excellence with distinctive design.
The TruStream continues this tradition.

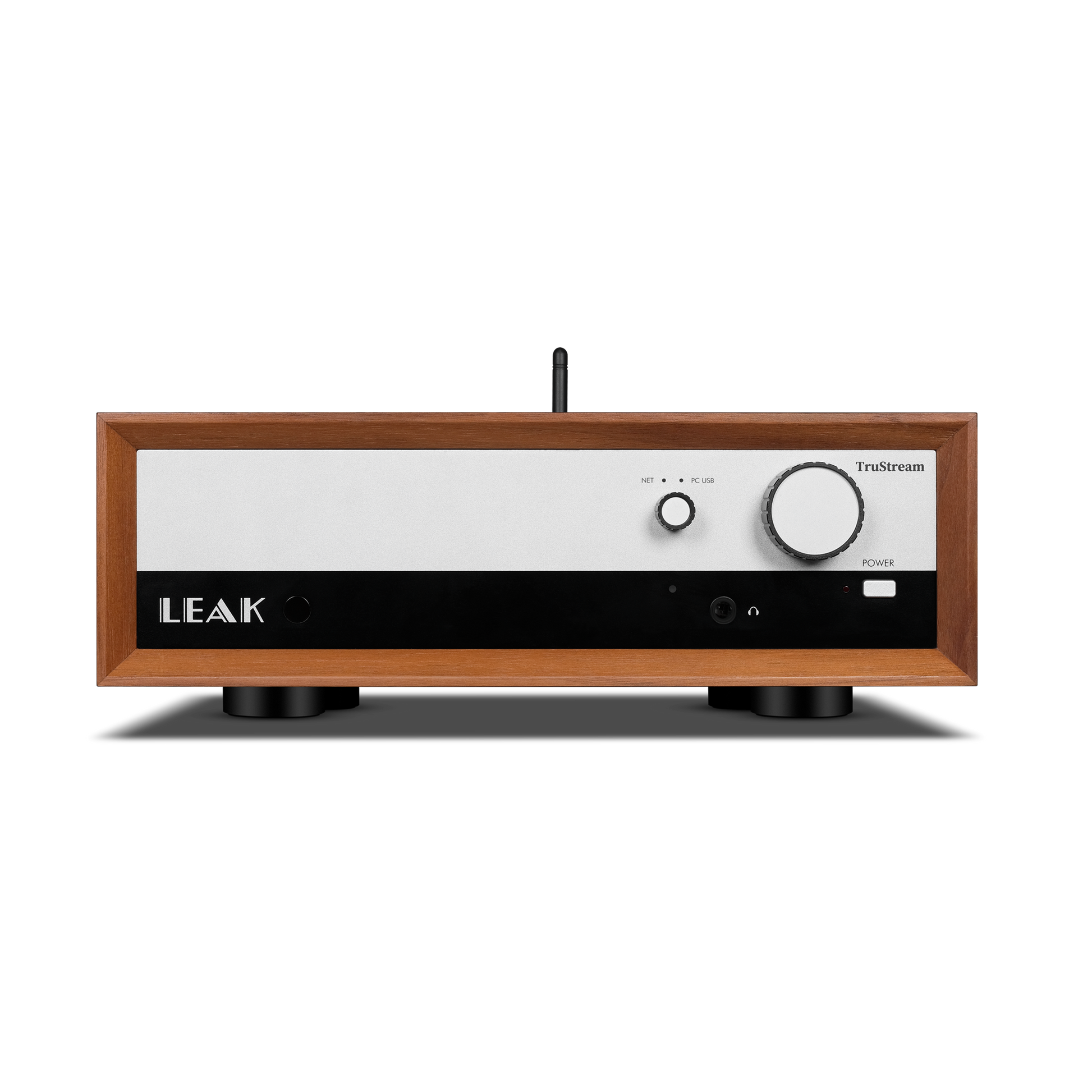

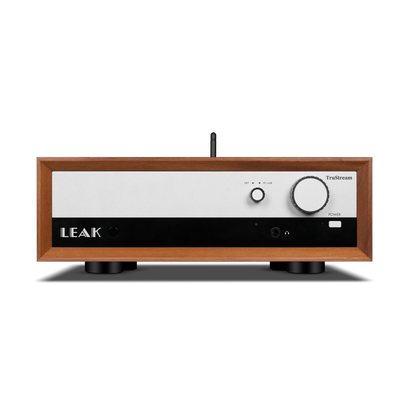

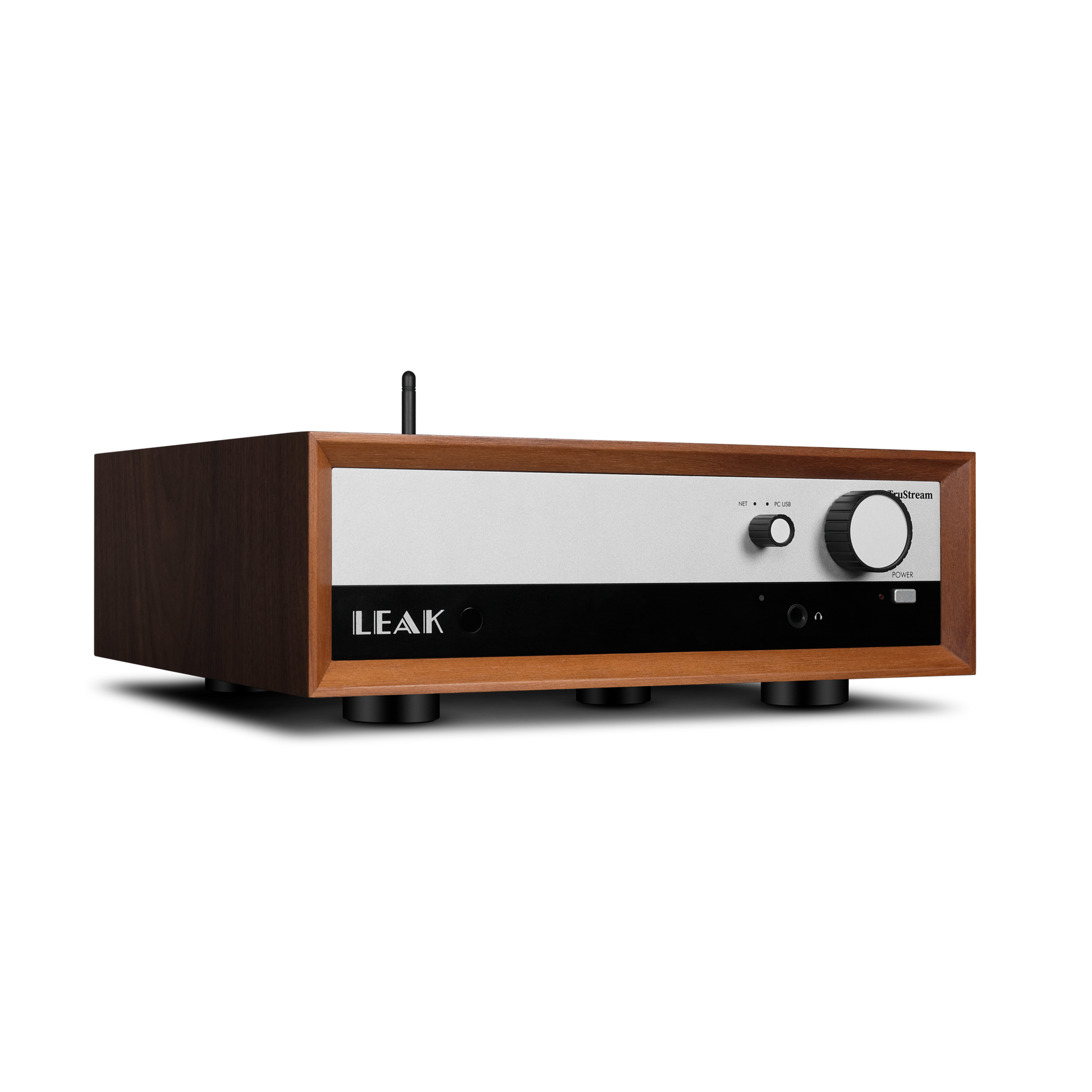

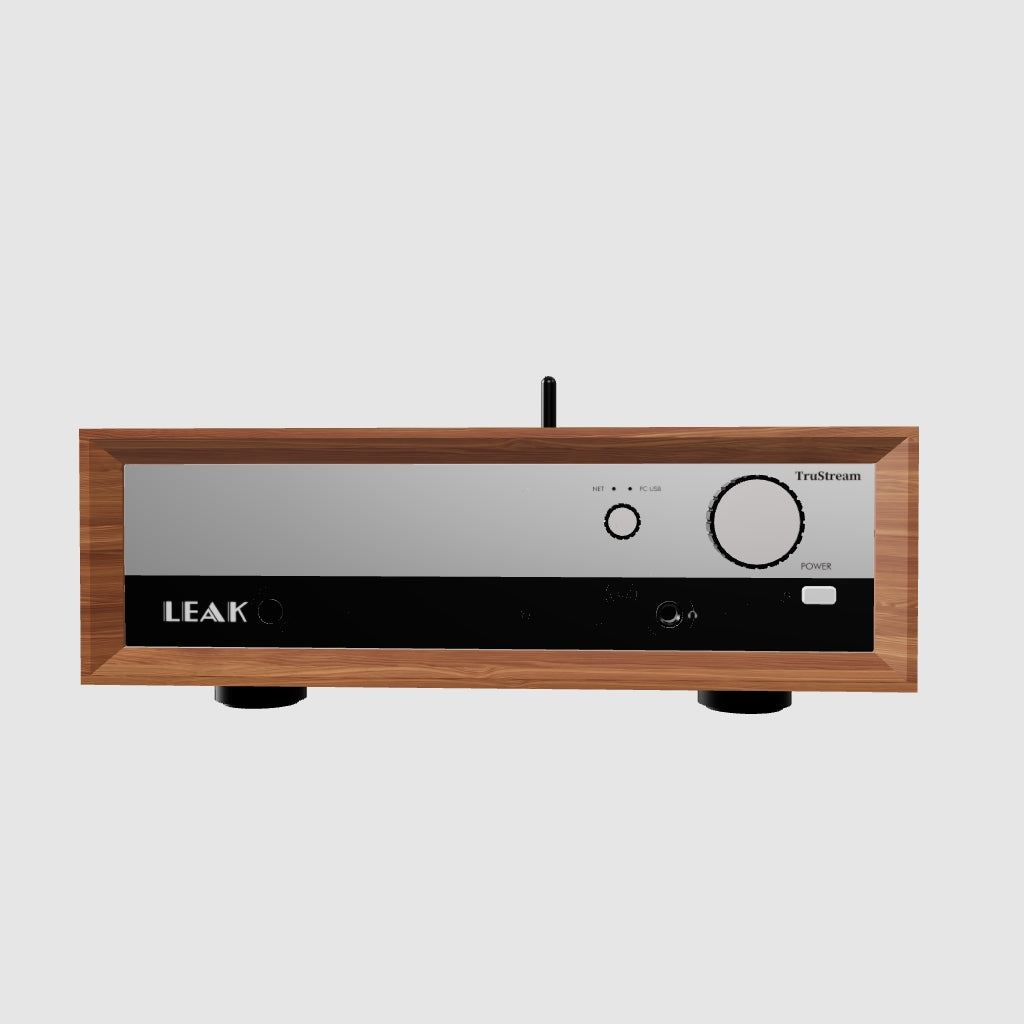

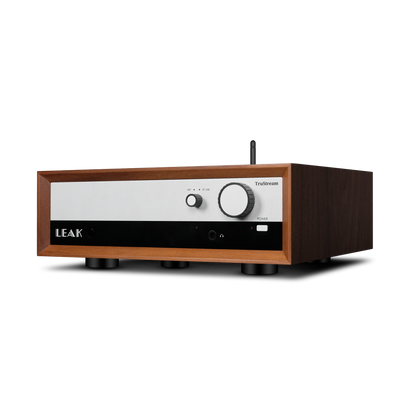

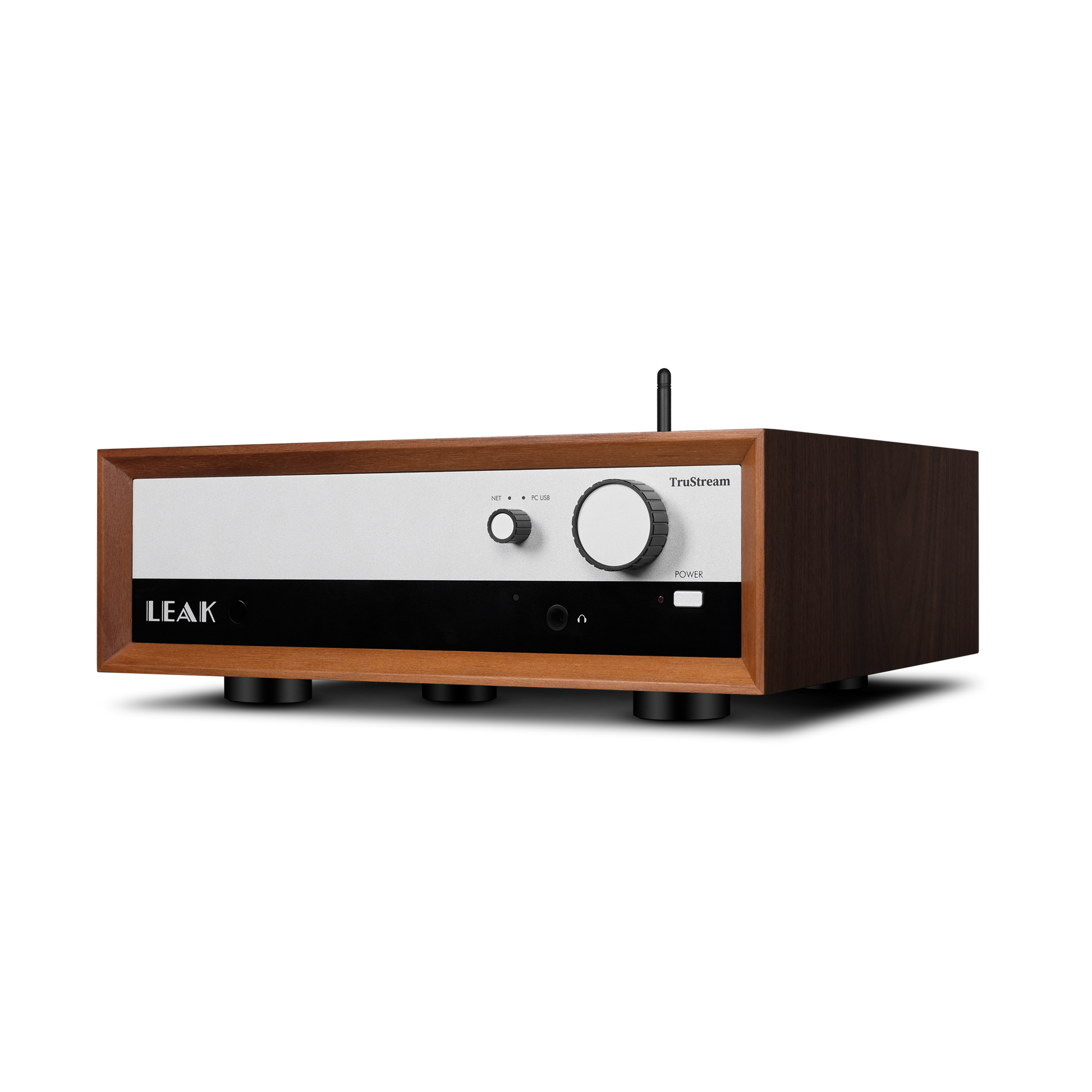

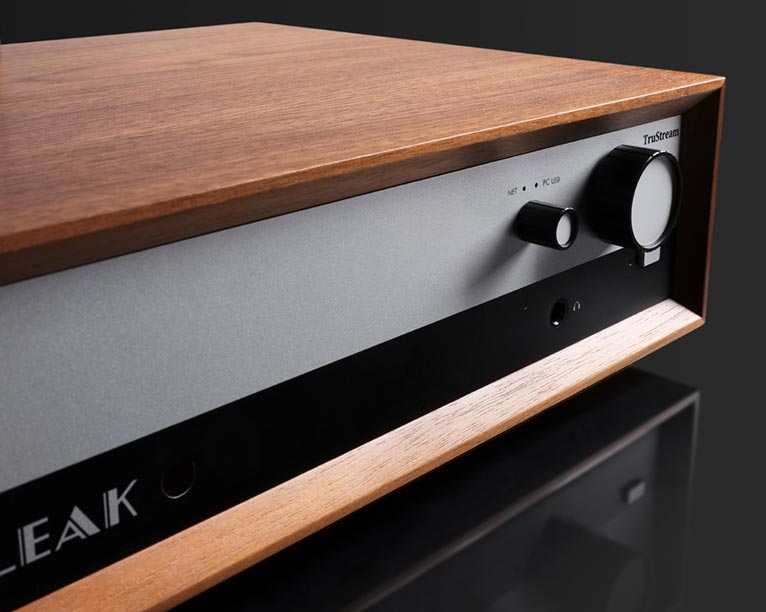

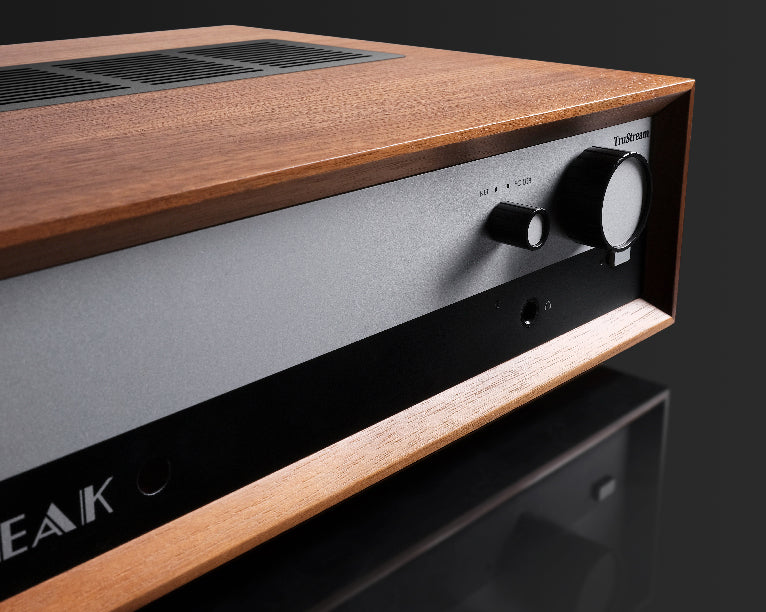

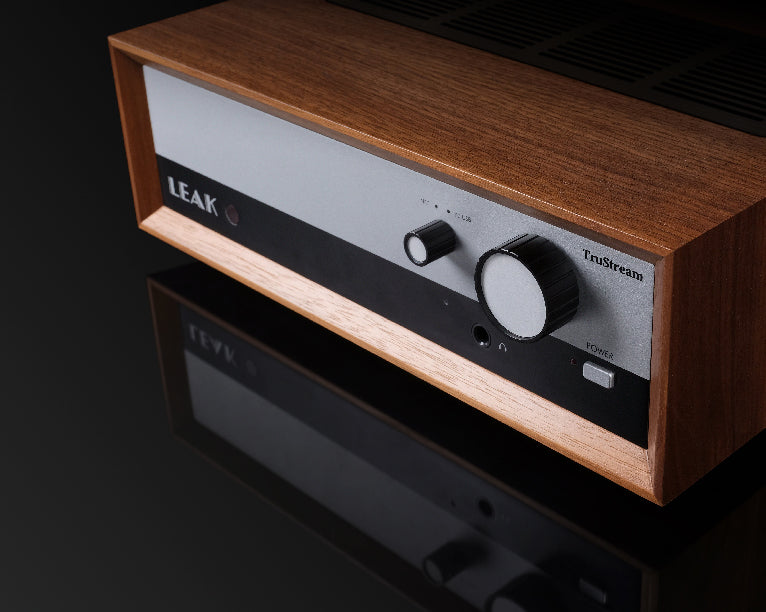

Its brushed-aluminium fascia and walnut-veneer cabinet reflect the timeless aesthetic of classic LEAK equipment, creating a system that feels perfectly at home in modern interiors.
Compact in size yet substantial in execution.
Perfect System Partner

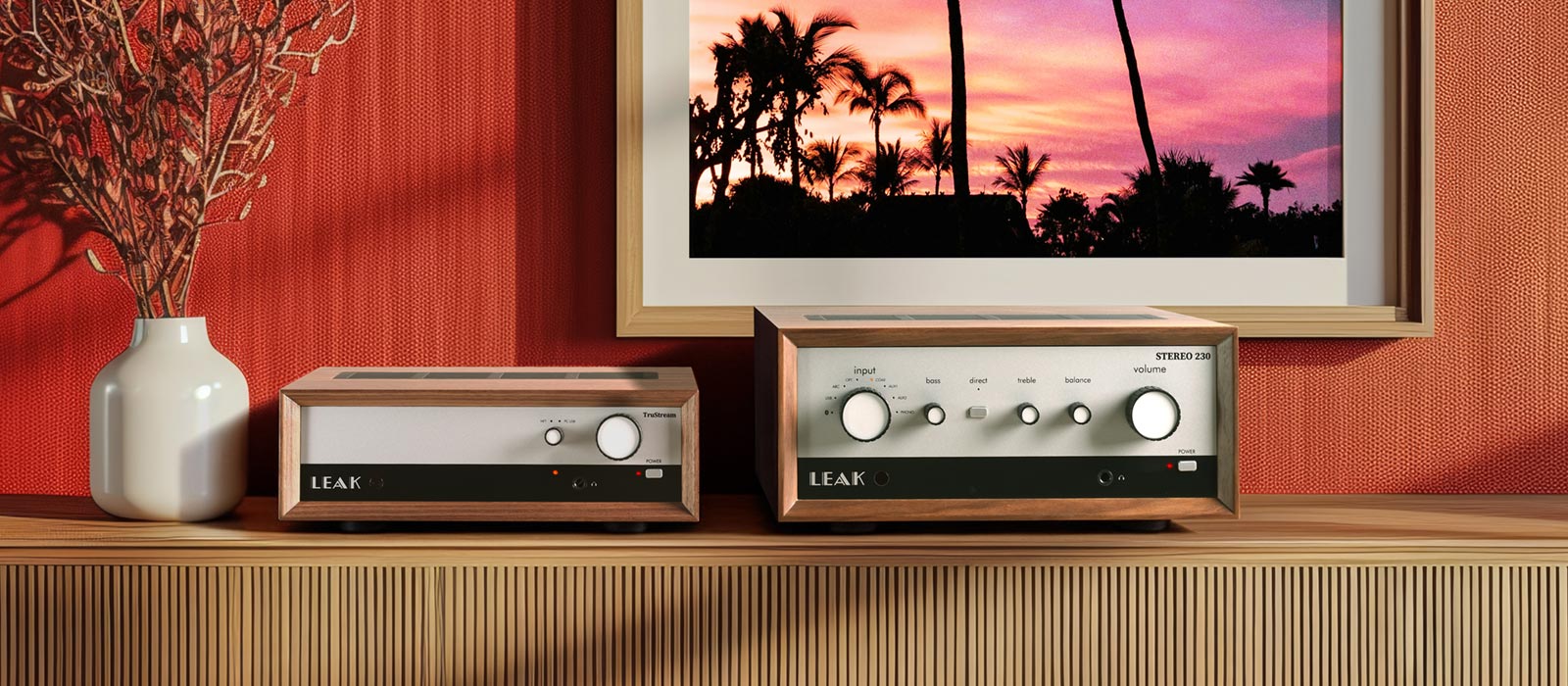

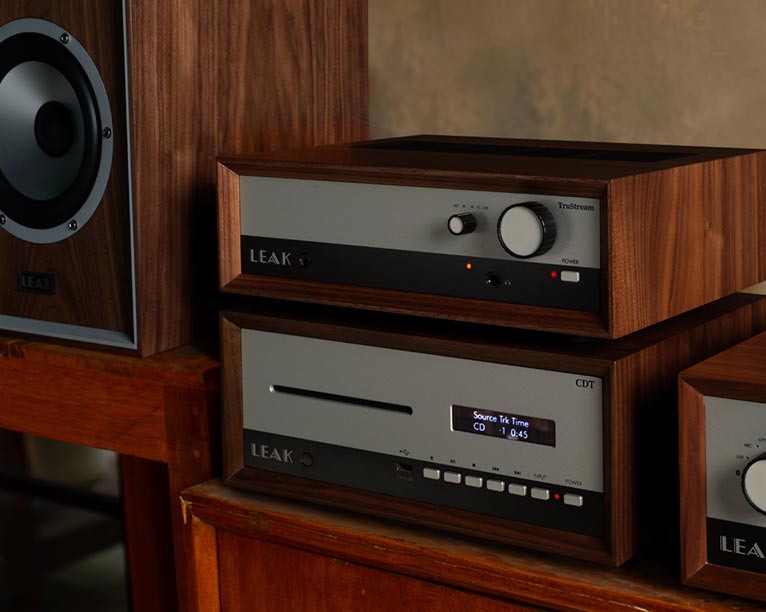

TruStream is designed to work seamlessly with any hi-fi system and is styled as the perfect match for the modern LEAK electronics range. When paired with the Stereo 130 or Stereo 230, it forms a beautifully integrated hi-fi set-up capable of delivering exceptional musical performance while maintaining the distinctive design character of the LEAK brand. Thanks to its unique connectivity, function, and operational simplicity, the TruStream is also a capable head-fi or desktop streaming component, or a stylish, discreet, and highly capable addition to any audio system.
Specifications
| Model | TruStream |
| General Description | Network Player |
| Design Philosophy and Core Technology | ESS Sabre ES9038Q2M 32-bit DAC RK3399 ARM® Cortex-A72 @ 2.0GHz ARM® Cortex-A53 @ 1.5GHz Powered by Silent Angel Streaming Technology (IEEE 802.11 a / b / g / n / ac, 2.4 / 5GHz) Native Support for Spotify Connect, TIDAL Connect, Qobuz Connect and TuneIn Internet Radio Roon Ready Gapless Playback Music From Network Shared Storage (over SMB / CIFS) USB Storage / Flash Drive / USB Hard Disk (Single-partition FAT32, exFAT) iOS / Android LEAK TruStream App Control |

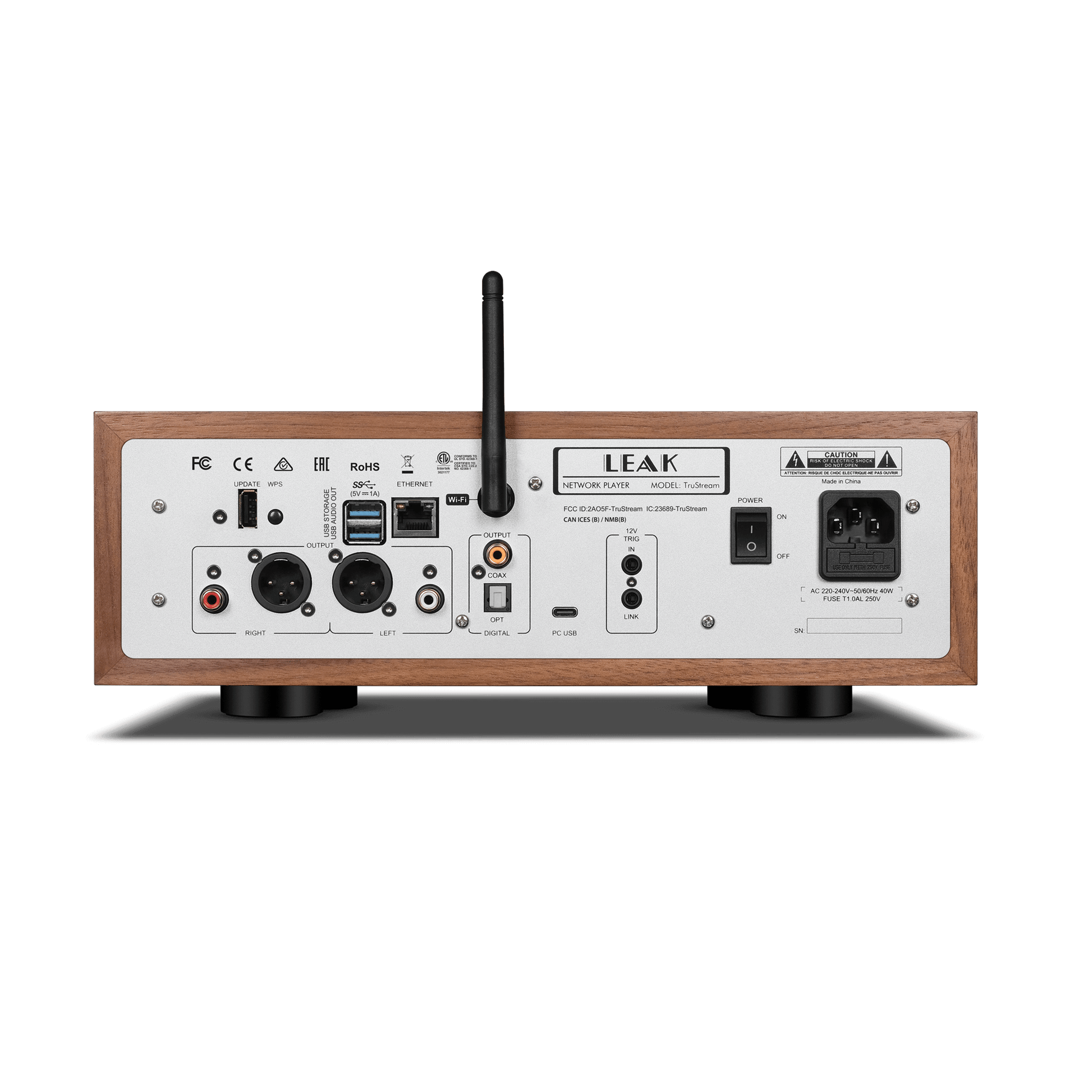

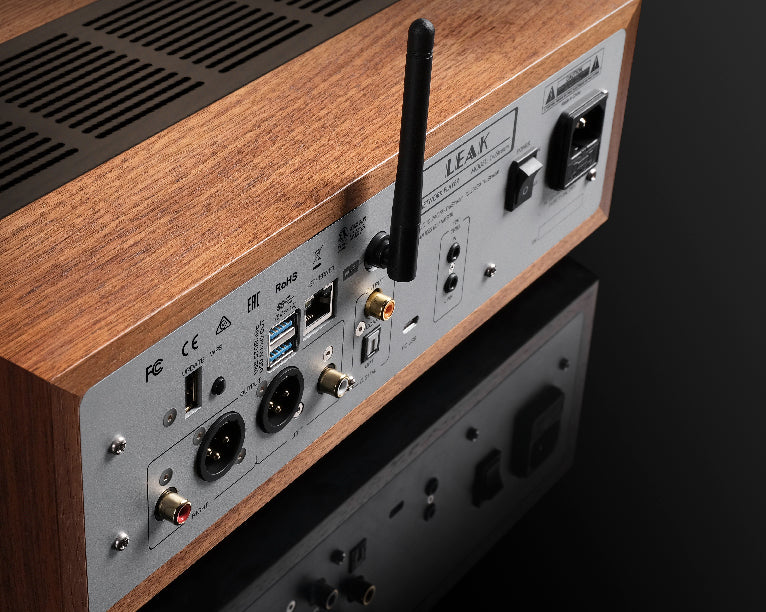

| Inputs | 1 x PC USB (USB Type-C) 1 x Ethernet 10 / 100 / 1000Base-T Ethernet 1 x USB-A for MCU Update 2 x USB-A for USB Storage |
| Outputs | 1 x RCA (pair) analogue outputs 1 x XLR (pair) analogue outputs 1 x Optical digital output 1 x Coaxial digital output 2 x USB-A for USB Audio Out 1 x Headphone |
| Supported File Formats | DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, CUE, APE Compressed (lossy) Audio: MP3, WMA, AAC, OGG |
| Sampling Frequency | PCM: 44.1kHz-768kHz (705.6kHz/768kHz Fixed-point supported via App streaming) DSD: DSD64, DSD128, DSD256(DoP), DSD512(PC USB) |
| Digital Section | |
| Digital Output Level | 500 +/- 50mVpp |
| Output Impedance | 75 ohms |
| Frequency Response | -0.01dB (20Hz - 20kHz, ref.1kHz) |
| Max. Sampling Frequency | 192kHz / 24-bit |
| Digital Output | 1 x Coaxial, 1 x Optical, USB Audio Out |
| D/A Converter | |
| Variable Output Voltage (0 dBFS, 1 kHz) | 0 – 2.05Vrms (RCA) 0 – 4.1Vrms (XLR) |
| DAC | ES9038Q2M |
| Frequency Response | +/-0.5dB (20Hz - 20KHz, ref.1KHz) |
| Total Harmonic Distortion (THD) | <0.001% (1kHz @ 2.05Vrms) |
| Max. Sampling Frequency | 768KHz / 32-bit |
| Signal-to-Noise Ratio (A-weighted) | >116dB (RCA), >120dB (XLR) |
| Output Impedance | 120ohm (RCA), 56ohm (XLR) |
| Headphone Amplifier | |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW) |
| Output Impedance | 2.35 ohm |
| Load Impedance | 20-600 ohm |
| General | |
| Standby Power Consumption | <0.5W |
| Net Weight | 6.5kg |
| Gross Weight | 8.5kg |
| Dimensions (mm) (W × H × D) | 330 x 118 x 278mm |
| Carton Size (mm) (W × H × D) | 475 x 260 x 455mm |
| Finish | Walnut |
| Power Requirements (depending on region) | 220-240V - 50/ 60Hz 100-120V - 50/ 60Hz |
| Standard Accessories | Power Cord, Remote Control, User Manual |
